Motorcycle TPMS (M211)

While we don’t talk about or say the word Safety very often, our constant efforts towards maintenance, careful selection of gear, and focused attention to riding conditions are done so that we can and do have a safe ride. Tire pressure and tire temperature are just as important to tire condition as thread. You need a reliable TPMS / Tire Pressure Monitoring System.

/ Type valve stem fit most of motorcycles
/ Separate component valve stem replaceable
/ Types of wheels(8.3mm~11.5mm) are compatible with L-Shape valve stem

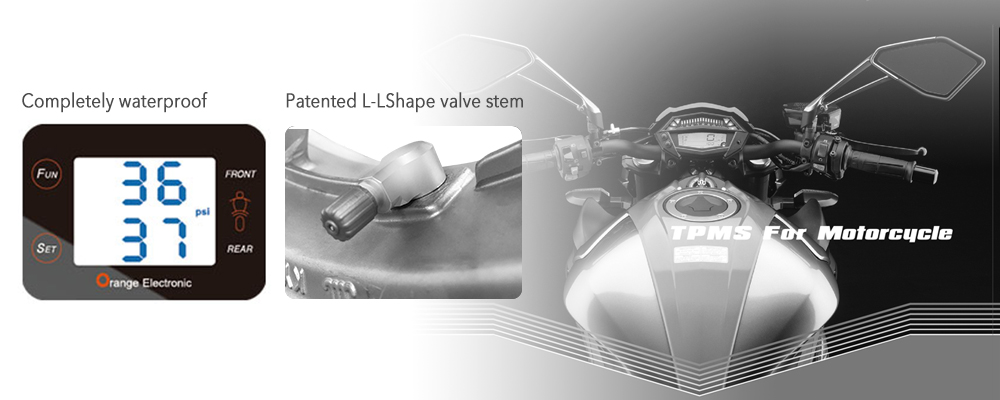

/ Patented L-LShape valve stem
/ Completely waterproof

We focus on the heavy motorcycle no shelter mechanism of the display panel design, with sealed
non-porous structure, the effect of 100% waterproof. Heavy motorcycle riders can still enjoy the
protection of wireless tire pressure monitoring even in the rain.

The Display Turns Red and Numbers Flash To Warn
You If Dangerous Levels Or Presets Are Reached

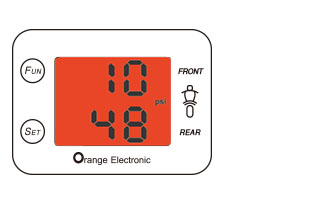

Abnormal High / low tire pressure warning

The display will continue to show in red until the abnormal tire pressure has improved when the motorcycle TPMS detects abnormal tire pressure.

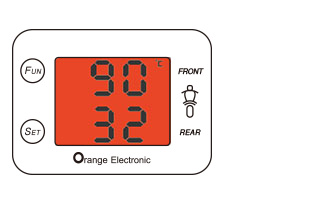

Abnormal temperature warning

The display will continue to show in red until the abnormal temperature has improved when the motorcycle TPMS detects abnormal temperature.

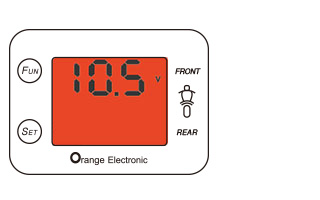

Abnormal voltage warning

The display will continue to show in red until the low voltage sensor has replaced when the motorcycle TPMS detects sensor voltage too low.

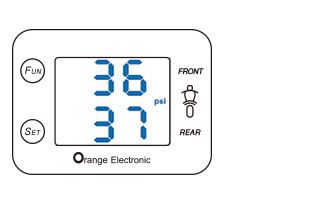

High / low tire pressure detection

High / low tire pressure detection, The display will show the value in white the word blue when motorcycle tire pressure in normal range.



Low-pressure warning Standard Setting :
Default warning criteria : 25 psi

Default warning range : 17-32 psi

High-pressure warning Standard Setting :
The default warning criteria : 44 psi

Pre-warning range : 38-49 psi

High-temperature detection

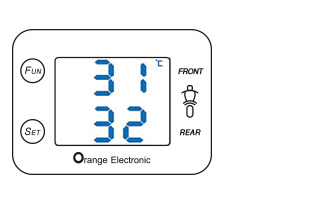

Mode 1 Displays Tire Pressure and Temperature Alternately.

Temperature detection, The display will show the value in white the word blue when your motorcycle in the normal range of temperature.



Standard high-temperature alert setting:
Default warning criteria : 176 °F
Default warning range : 140 - 248 °F

Voltage detection

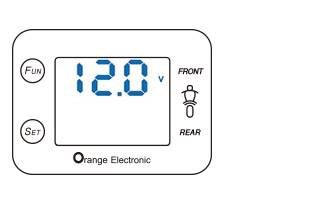

Mode 4 Displays Bike System Voltage.
The display will show the value in white the word blue when your motorcycle in the normal range of voltage.

Assuming the sensor battery capacity has been exhausted or need to replace tires, the sensor must relearn through the display in order to show the correct information.

Waterproof display panel

Easy to Manage Your Motocycle Information and Monitor Tire Changes Anytime.

Our TPMS Can Make That Ride More Confident and Safer

Our new Orange-Electronic M207 TPM Systems are an essential tool that should be a part of Your motorcycle’s On-board
Information System. These are designed to mount inside your Tubeless Tires. Sport, Race, Adventure, Touring,
and Cruising are All made safer with TPMS Installed. So, No Matter How or Where You Ride,
Our TPMS Can Make That Ride More Confident and Safer.


M211 Specification

Use a torque wrench and make sure to tighten
the hexagonal nut to 4.5~5Nm.c

Product Specification
Model Motorcycle Tire Pressure Monitoring System
Quantity Intemal TPMS sensor x 2pcs
Operating Temperature -40°C ~ 85°C
Working Humidity Max 95%
RF Frequency 2.4GHz
Monitoring Pressure Range 0 ~ 116 psi
Sensor Weight 29.5 ± 3g
APP Version Support iOS 16.0 and above
Support Android 10 and above
Note Hex Nut Installation Torque, 4.5 ~ 5 N.m


Quantity Intemal TPMS sensor x 2pcs
Operating Temperature -40°C ~ 85°C
Working Humidity Max 95%
RF Frequency 2.4GHz
Monitoring Pressure Range 0 ~ 116 psi
Sensor Weight 29.5 ± 3g
APP Version (iOS) Support iOS 16.0 and above
APP Version (Android) Support Android 10 and above
Note Hex Nut Installation Torque, 4.5 ~ 5 N.m
